SS110 - Schottky Barrier Rectifiers

Download the SS110 datasheet PDF. This datasheet also covers the SS18 variant, as both devices belong to the same schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Metal silicon junction, majority carrier conduction.
  • High surge capability.
  • High temperature soldering guaranteed: 260°C/10 seconds.
  • High current capability, low forward voltage drop.
  • Guarding for over voltage protection.
  • RoHS Compliant Mechanical Data.
  • Case: SMA molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102.
  • Polarity: Color band denotes c.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SS18-GME.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
SS110 1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS Frontier Electronics
SS110 1A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS TIPTEK
SS110 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER MIC
SS110 1.0AMP.SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS Kingtronics
SS110 TO-5 Pressure Transducer Sendo

Other Datasheets by Galaxy Microelectronics

Part Number Description
SS110F Schottky Barrier Rectifiers
SS110FA SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SS1150 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS
SS1150F Schottky Barrier Rectifiers
SS1150FA SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

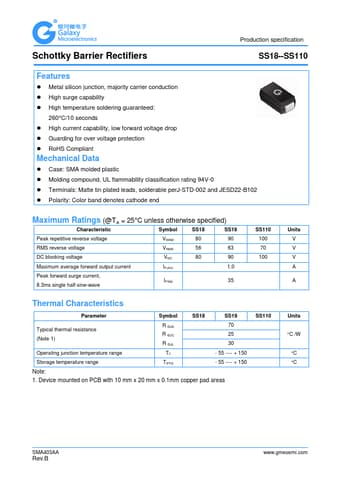

Schottky Barrier Rectifiers Production specification SS18--SS110 Features  Metal silicon junction, majority carrier conduction  High surge capability  High temperature soldering guaranteed: 260°C/10 seconds  High current capability, low forward voltage drop  Guarding for over voltage protection  RoHS Compliant Mechanical Data  Case: SMA molded plastic  Molding compound, UL flammability classification rating 94V-0  Terminals: Matte tin plated leads, solderable perJ-STD-002 and JESD22-B102  Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol SS18 SS19 Peak repetitive reverse voltage VRRM 80 90 RMS reverse voltage VRMS 56 63 DC blocking voltage VDC 80 90 Maximum average forward output current IF(A
