CDP6818 - CMOS Real-Time Clock

GE

The CDP6818 by GE is a CMOS Real-Time Clock. Below is the official datasheet preview.

📥 Download Datasheet

CDP6818 CMOS Real-Time Clock by GE - Datasheet Preview — Official preview page of the CDP6818 CMOS Real-Time Clock datasheet (GE).

Datasheet Details

Part number	CDP6818
Manufacturer	GE
File Size	1.20 MB
Description	CMOS Real-Time Clock
Datasheet	CDP6818-GE.pdf

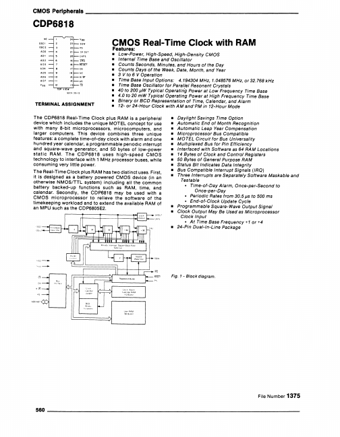

Additional preview pages of the CDP6818 datasheet.

CDP6818 Product details

Features

Low-Power, High-Speed, High-Density CMOS.
Internal Time Base and Oscillator.
Counts Seconds, Minutes, and Hours of the Day.
Counts Days of the Week, Date, Month, and Year.
3 V to 6 V Operation.
Time Base Input Options: 4.194304 MHz, 1.048576 MHz, or 32.768 kHz.
Time Base Oscillator for Parallel Resonant Crystals.
40 to 200 I1W Typical Operating Power at Low Frequency Time Base.
4.0 to 20 mW Typical Operating Power.
