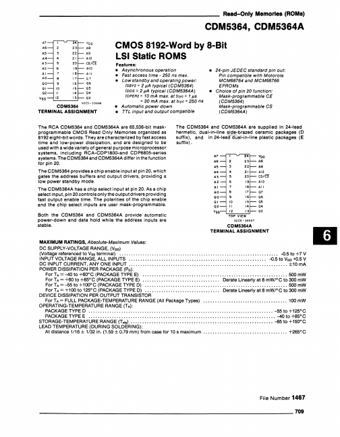

CDM5364A, CDM5364 - CMOS 8192-Word by 8-Bit LSI Static ROMS

Datasheet Details

Part number	CDM5364A, CDM5364
Manufacturer	GE
File Size	271.71 KB
Description	CMOS 8192-Word by 8-Bit LSI Static ROMS
Datasheet	CDM5364-GE.pdf
Note	This datasheet PDF includes multiple part numbers: CDM5364A, CDM5364. Please refer to the document for exact specifications by model.

Asynchronous operation.
Fast access time - 250 ns max.
Low standby and operating power: ISBY2 = 2 p. A typical (CDM5364) loos = 2 p. A typical (CDM5364A) IOPER2 = 10 mA max. at teye = 1 p. s = 30 mA max. at teye = 250 ns.
Automatic power down.
TTL input and output compatible.
24-pin JEDEC standard pin out: Pin compatible with Motorola MCM68764 and MCM68766 EPROMs.
Choice of pin 20 function: Mask-programmable CE (CDM5364) Mask-progra.
