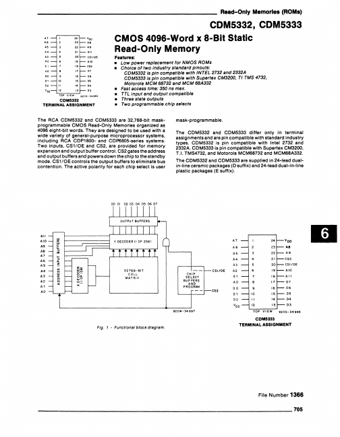

CDM5332 - CMOS 4096-Word x 8-Bit Static Read-Only Memory

Datasheet Details

Part number	CDM5332
Manufacturer	GE
File Size	187.84 KB
Description	CMOS 4096-Word x 8-Bit Static Read-Only Memory
Datasheet	CDM5332-GE.pdf

Low power replacement for NMOS ROMs.
Choice of two industry standard pinouts: CDM5332 is pin compatible with INTEL 2732 and 2332A CDM5333 is pin compatible with Supertex CM3200, TI TMS 4732, Motorola MCM 68732 and MCM 68A332.
Fast access time: 350 ns max.
TTL input and output compatible.
Three state outputs.
Two programmable chip selects The RCA CDM5332 and CDM5333 are 32,768-bit maskprogrammable CMOS Read-Only Memories organized as 4096.
