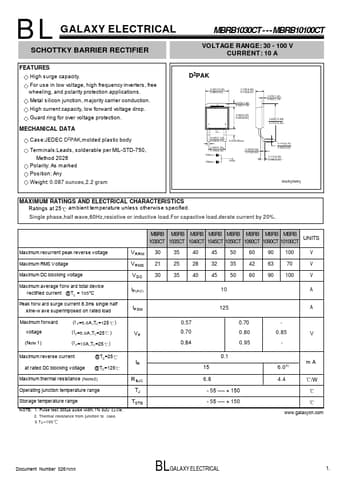

BL GALAXY ELECTRICAL
SCHOTTKY BARRIER RECTIFIER
FEATURES High s urge capacity. For us e in low voltage, high frequency inverters , free
111wheeling, and polarity protection applications . Metal s ilicon junction, m ajority carrier conduction. High current capacity, low forward voltage drop. Guard ring for over voltage protection.
MECHANICAL DATA
Cas e:JEDEC D2PAK,m olded plas tic body
Term inals :Leads, s olderable per MIL-STD-750, 1 1 Method 2026
Polarity: As m arked Pos ition: Any Weight: 0.087 ounces,2.2 gram
MBRB1030CT - - - MBRB10100CT
VOLTAGE RANGE: 30 - 100 V CURRENT: 10 A
D2PAK
0.421(10.69) 0.380(9.65)
3
12
0.190(4.83) 0.172(4.37)
0.055(1.40) 0.045(1.14)
0.364(9.25) 0.325(8.25)
0.055(1.40) 0.045(1.14)
0.625(15.88) 0.575(14.60)
0.045(1.14) 0.020(0.51)
0.220(5.58) 0.180(4.
