M202MD15FA - VACUUM FLUORESCENT DISPLAY MODULE

M202MD15FA Description

AN-E-2306 APPLICATION NOTE VACUUM FLUORESCENT DISPLAY MODULE CHARACTER DISPLAY MODULE M202MD15FA GENERAL .
Futaba Vacuum Fluorescent Display Module M202MD15FA, with Futaba VFD 202-MD-15GNK display, produces 20 digits×2rows write 5×8 dot matrix.

📥 Download Datasheet

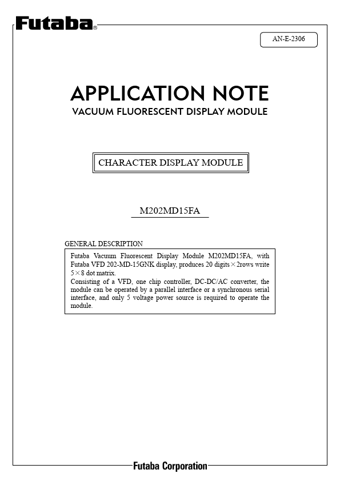

Preview of M202MD15FA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M202MD15FA
Manufacturer
Futaba
File Size
260.84 KB
Datasheet
M202MD15FA-Futaba.pdf
Description
VACUUM FLUORESCENT DISPLAY MODULE
