The MBL80286-6 is 16-Bit Microprocessor designed by Fujitsu.
| Part number | MBL80286-6, MBL80286-8 |
|---|---|
| Manufacturer | Fujitsu |
| File Size | 4.34 MB |
| Description | 16-Bit Microprocessor |
| Datasheet |

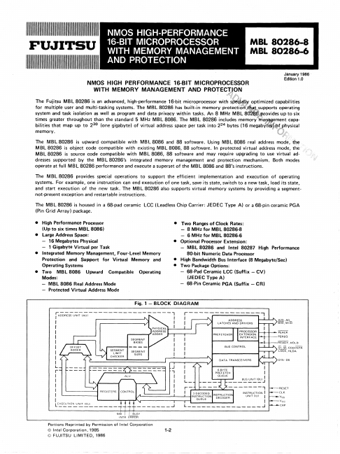

 MBL80286-8-Fujitsu.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: MBL80286-6, MBL80286-8. Please refer to the document for exact specifications by model. |
|
|
The following pin function descriptions are for the MBL 80286 microprocessor: Table 1 - PIN DESCRIPTION Symbol Type Name and Function ClK I System Clock provides the fundamental timing for MBl 80286 systems.It is divided by two inside the MBl80286 to generate the processor clock.The internal divide-by-two circuitry can be synchronized to an external clock generator by a lOW to HIGH transition on the RESET input.D15-DO I/O Data Bus inputs data during memory, I/O, and interrupt ack
