MBM30LV0032 - 32M (4M X 8) BIT NAND-type

Product Overview

Fujitsu Media Devices

Part number	MBM30LV0032
Manufacturer	Fujitsu Media Devices
File Size	403.21 KB
Description	32M (4M X 8) BIT NAND-type
Datasheet	MBM30LV0032 Datasheet

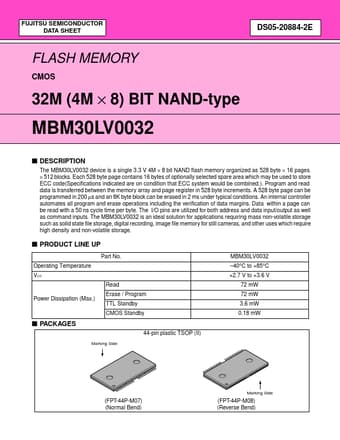

Additional preview pages of the MBM30LV0032 datasheet.

The MBM30LV0032 device is a single 3.3 V 4M × 8 bit NAND flash memory organized as 528 byte × 16 pages × 512 blocks.

3.3 V-only operating voltage (2.7 V to 3.6 V) Minimizes system level power requirements.
Organization Memory Cell Array : (4M + 128K) ×8 bit Data Register : (512 + 16) ×8 bit.
Automatic Program and Erase Page Program : (512 + 16) Byte Block Erase : (8K + 256) Byte.
528 Byte Page Read Operation Random Access : 7 µs (Max. ) Serial Access : 35 ns (Max. ).
Fast Program and Erase Program Time : 200 µs (Typ. ) / page Block Erase Time : 2 ms (Typ. ) / block.
