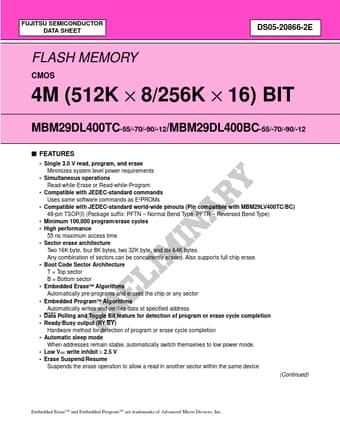

MBM29DL400BC - 4M (512K X 8/256K X 16) BIT

Product Overview

Fujitsu Media Devices

Part number	MBM29DL400BC
Manufacturer	Fujitsu Media Devices
File Size	551.75 KB
Description	4M (512K X 8/256K X 16) BIT
Datasheet	MBM29DL400BC Datasheet
Note	This datasheet PDF includes multiple part numbers: MBM29DL400BC, MBM29DL400TC. Please refer to the document for exact specifications by model.
Additional preview pages of the MBM29DL400BC datasheet.

The MBM29DL400TC/BC are a 4M-bit, 3.0 V-only Flash memory organized as 512K bytes of 8 bits each or 256K words of 16 bits each.

Single 3.0 V read, program, and erase Minimizes system level power requirements.
Simultaneous operations Read-while-Erase or Read-while-Program.
Compatible with JEDEC-standard commands Uses same software commands as E2PROMs.
Compatible with JEDEC-standard world-wide pinouts (Pin compatible with MBM29LV400TC/BC) 48-pin TSOP(I) (Package suffix: PFTN.
Normal Bend Type, PFTR.
Reversed Bend Type).
Minimum 100,000 program/erase cycles.
