The MB15E03 is Single Serial Input PLL Frequency Synthesizer On-Chip 1.2 GHz Prescaler designed by Fujitsu Media Devices.

Product Overview

Fujitsu Media Devices

Part number	MB15E03
Manufacturer	Fujitsu Media Devices
File Size	153.38 KB
Description	Single Serial Input PLL Frequency Synthesizer On-Chip 1.2 GHz Prescaler
Datasheet	MB15E03_FujitsuMediaDevices.pdf

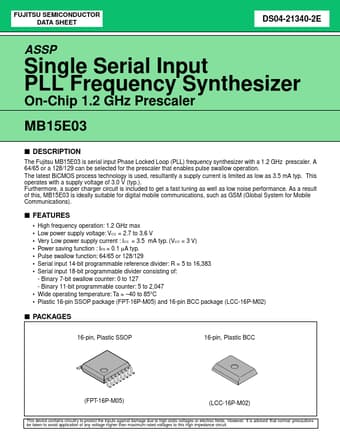

Additional preview pages of the MB15E03 datasheet.

The Fujitsu MB15E03 is serial input Phase Locked Loop (PLL) frequency synthesizer with a 1.2 GHz prescaler.

High frequency operation: 1.2 GHz max Low power supply voltage: VCC = 2.7 to 3.6 V Very Low power supply current : ICC = 3.5 mA typ. (VCC = 3 V) Power saving function : IPS = 0.1 µA typ. Pulse swallow function: 64/65 or 128/129 Serial input 14-bit programmable reference divider: R = 5 to 16,383 Serial input 18-bit programmable divider consisting of: - Binary 7-bit swallow counter: 0 to 127 - Binary 11-bit programmable counter:.
