FMM363HE, FMM362HE - 4Gb/s GaAs Standard Logic IC

Fujitsu Media Devices

📥 Download Datasheet

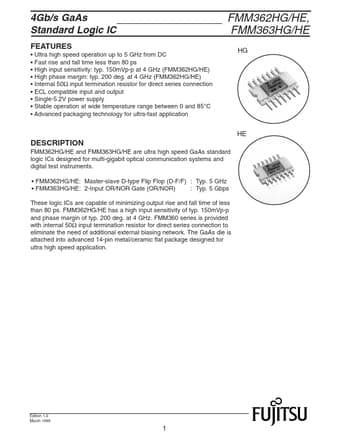

FMM363HE Datasheet Preview — This datasheet PDF includes multiple part numbers: FMM363HE, FMM362HE. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	FMM363HE, FMM362HE
Manufacturer	Fujitsu Media Devices
File Size	281.61 KB
Description	4Gb/s GaAs Standard Logic IC
Datasheet	FMM362HE-FujitsuMediaDevices.pdf
Note	This datasheet PDF includes multiple part numbers: FMM363HE, FMM362HE. Please refer to the document for exact specifications by model.

FMM363HE Product details

Description

FMM362HG/HE and FMM363HG/HE are ultra high speed GaAs standard logic ICs designed for multi-gigabit optical communication systems and digital test instruments. FMM362HG/HE: Master-slave D-type Flip Flop (D-F/F) : Typ. FMM363HG/HE: 2-Input OR/NOR Gate (OR/NOR) : Typ.

Features

Ultra high speed operation up to 5 GHz from DC.
Fast rise and fall time less than 80 ps.
High input sensitivity: typ. 150mVp-p at 4 GHz (FMM362HG/HE).
High phase margin: typ. 200 deg. at 4 GHz (FMM362HG/HE).
Internal 50Ω input termination resistor for direct series connection.
ECL compatible input and output.
Single-5.2V power supply.
Stable operation at wide temperature range between 0 and 85°C.
Advanced packaging.
