FMM362HE - 4Gb/s GaAs Standard Logic IC

Description

FMM362HG/HE and FMM363HG/HE are ultra high speed GaAs standard logic ICs designed for multi-gigabit optical communication systems and digital test instruments.

FMM362HG/HE: Master-slave D-type Flip Flop (D-F/F) : Typ.

FMM363HG/HE: 2-Input OR/NOR Gate (OR/NOR) : Typ.

Features

  • Ultra high speed operation up to 5 GHz from DC.
  • Fast rise and fall time less than 80 ps.
  • High input sensitivity: typ. 150mVp-p at 4 GHz (FMM362HG/HE).
  • High phase margin: typ. 200 deg. at 4 GHz (FMM362HG/HE).
  • Internal 50Ω input termination resistor for direct series connection.
  • ECL compatible input and output.
  • Single-5.2V power supply.
  • Stable operation at wide temperature range between 0 and 85°C.
  • Advanced packaging.

📥 Download Datasheet

📁 Similar Datasheet

  • FMM300-0055P - Trench Power MOSFET (IXYS)
  • FMM-22R - Silicon Diode (Sanken)
  • FMM-22S - Silicon Diode (Sanken)
  • FMM-24R - Rectifier Diodes (Sanken electric)
  • FMM-24S - Rectifier Diodes (Sanken electric)
  • FMM-26R - Rectifier Diodes (Sanken electric)
  • FMM-26S - Rectifier Diodes (Sanken electric)
  • FMM-31R - Rectifier Diodes (Sanken electric)
  • FMM-31S - Rectifier Diodes (Sanken electric)
  • FMM-32R - Rectifier Diodes (Sanken electric)
Other Datasheets by Fujitsu Media Devices

Full PDF Text Transcription

Click to expand full text

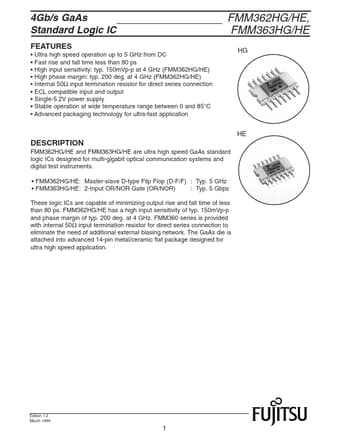

4Gb/s GaAs Standard Logic IC FEATURES • Ultra high speed operation up to 5 GHz from DC • Fast rise and fall time less than 80 ps • High input sensitivity: typ. 150mVp-p at 4 GHz (FMM362HG/HE) • High phase margin: typ. 200 deg. at 4 GHz (FMM362HG/HE) • Internal 50Ω input termination resistor for direct series connection • ECL compatible input and output • Single-5.2V power supply • Stable operation at wide temperature range between 0 and 85°C • Advanced packaging technology for ultra-fast application FMM362HG/HE, FMM363HG/HE HG DESCRIPTION FMM362HG/HE and FMM363HG/HE are ultra high speed GaAs standard logic ICs designed for multi-gigabit optical communication systems and digital test instruments. HE • FMM362HG/HE: Master-slave D-type Flip Flop (D-F/F) : Typ.
