MB39C007 - 2 ch DC/DC Converter IC Built-in Switching FET & voltage detection function

Fujitsu Component

The MB39C007 by Fujitsu Component is a 2 ch DC/DC Converter IC Built-in Switching FET & voltage detection function. Below is the official datasheet preview.

📥 Download Datasheet

MB39C007 2 ch DC/DC Converter IC Built-in Switching FET & voltage detection function by Fujitsu Component - Datasheet Preview — Official preview page of the **MB39C007** 2 ch DC/DC Converter IC Built-in Switching FET & voltage detection function datasheet (Fujitsu Component).

Datasheet Details

Part number	MB39C007
Manufacturer	Fujitsu Component
File Size	941.76 KB
Description	2 ch DC/DC Converter IC Built-in Switching FET & voltage detection function
Datasheet	MB39C007_FujitsuComponent.pdf

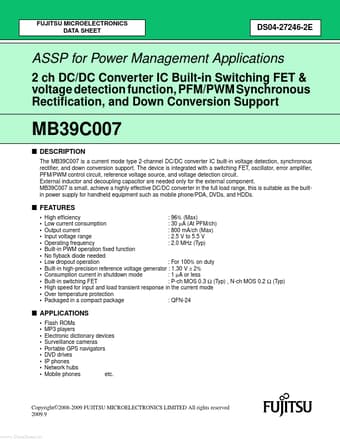

Additional preview pages of the MB39C007 datasheet.

MB39C007 Product details

Description

The MB39C007 is a current mode type 2-channel DC/DC converter IC built-in voltage detection, synchronous rectifier, and down conversion support.

Features

S.
High efficiency : 96% (Max) Low current consumption : 30 μA (At PFM/ch) Output current : 800 mA/ch (Max) Input voltage range : 2.5 V to 5.5 V Operating frequency : 2.0 MHz (Typ) Built-in PWM operation fixed function No flyback diode needed Low dropout operation : For 100% on duty Built-in high-precision reference voltage generator : 1.30 V ± 2% Consumption.
