MB39C011A - 2 ch DC/DC Converter IC

Name: MB39C011A
SKU: MB39C011A-1104009

Cypress Semiconductor

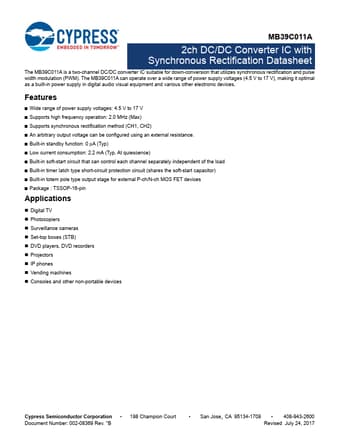

The MB39C011A by Cypress Semiconductor is a 2 ch DC/DC Converter IC. Below is the official datasheet preview.

Datasheet Details

Part number	MB39C011A
Manufacturer	Cypress Semiconductor
File Size	1.00 MB
Description	2 ch DC/DC Converter IC
Datasheet	MB39C011A-CypressSemiconductor.pdf
Additional preview pages of the MB39C011A datasheet.

Wide range of power supply voltages: 4.5 V to 17 V.
Supports high frequency operation: 2.0 MHz (Max).
Supports synchronous rectification method (CH1, CH2).
An arbitrary output voltage can be configured using an external resistance.
Built-in standby function: 0 μA (Typ).
Low current consumption: 2.2 mA (Typ, At quiescence).
Built-in soft-start circuit that can control each channel separately independent of the load.
Built-in timer latch type short-circuit.
