FA5614N - Continuous Conduction Mode PFC

Fuji

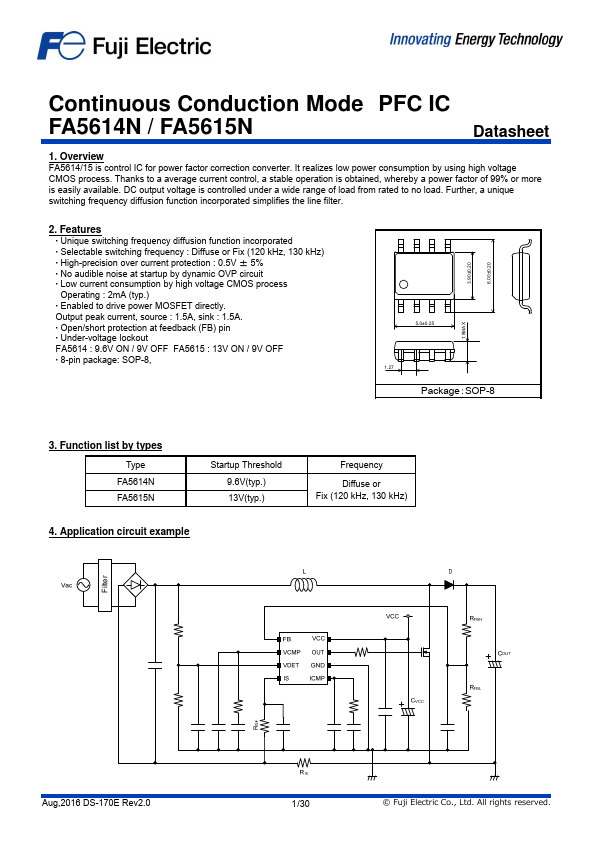

The FA5614N by Fuji is a Continuous Conduction Mode PFC. Below is the official datasheet preview.

📥 Download Datasheet

FA5614N Continuous Conduction Mode PFC by Fuji - Datasheet Preview — Official preview page of the **FA5614N** Continuous Conduction Mode PFC datasheet (Fuji).

Datasheet Details

Part number	FA5614N
Manufacturer	Fuji
File Size	755.44 KB
Description	Continuous Conduction Mode PFC
Datasheet	FA5614N-Fuji.pdf

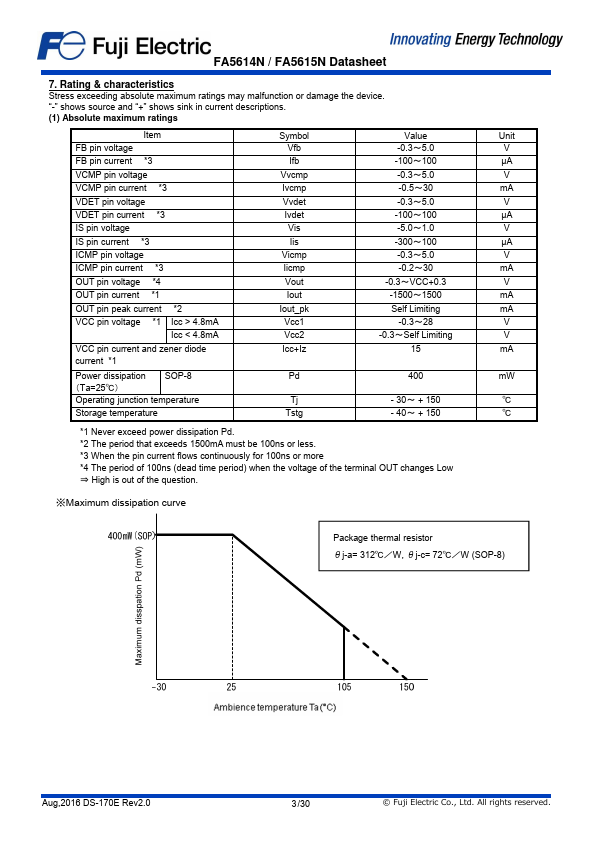

Additional preview pages of the FA5614N datasheet.

FA5614N Product details

Description

of pins Pin No.Pin name 1 FB 2 VCMP 3 VDET 4 IS 5 ICMP 6 GND 7 OUT 8 VCC Pin Function Voltage Feedback Input 1 Voltage Loop Compensation 2 AC Voltage Input 1 Current Sense Input Current Loop Compensation 2 Ground Output Power Supply 1 Notes) 1 connect the capacitor. 2 connect capacitor and the resistor.

Features

Unique switching frequency diffusion function incorporated.
Selectable switching frequency : Diffuse or Fix (120 kHz, 130 kHz).
High-precision over current protection : 0.5V ± 5%.
No audible noise at startup by dynamic OVP circuit.
Low current consumption by high voltage CMOS process Operating : 2mA (typ. ).
Enabled to drive power MOSFET directly. Output peak current, source : 1.5A, sink : 1.5A.
Open/short protection at feedback (FB) pin.
Under-voltage lo.
