MRF5S9101NR1 - GSM/GSM EDGE LATERAL N-CHANNEL RF POWER MOSFETs

Freescale Semiconductor

The MRF5S9101NR1 by Freescale Semiconductor is a GSM/GSM EDGE LATERAL N-CHANNEL RF POWER MOSFETs. Below is the official datasheet preview.

📥 Download Datasheet

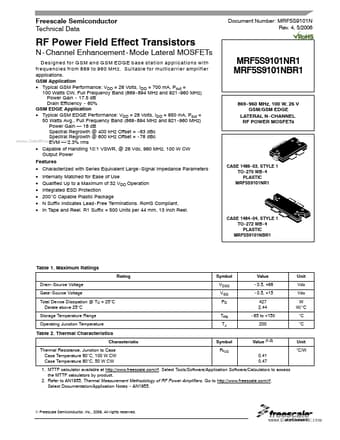

MRF5S9101NR1 GSM/GSM EDGE LATERAL N-CHANNEL RF POWER MOSFETs by Freescale Semiconductor - Datasheet Preview — Official preview page of the **MRF5S9101NR1** GSM/GSM EDGE LATERAL N-CHANNEL RF POWER MOSFETs datasheet (Freescale Semiconductor).

Datasheet Details

Part number	MRF5S9101NR1
Manufacturer	Freescale Semiconductor
File Size	574.84 KB
Description	GSM/GSM EDGE LATERAL N-CHANNEL RF POWER MOSFETs
Datasheet	MRF5S9101NR1_FreescaleSemiconductor.pdf
Additional preview pages of the MRF5S9101NR1 datasheet.

MRF5S9101NR1 Product details

Description

4.7 mF Chip Capacitors (2220) 10 nF 200B Chip Capacitors 33 pF 100B Chip Capacitors 22 pF 100B Chip Capacitors 10 pF 100B Chip Capacitors 8.2 pF 100B Chip Capacitors 5.6 pF 100B Chip Capacitor 4.7 pF 100B Chip Capacitor 3.9 pF 100B Chip Capacitor 220 mF, 50 V Electrolytic Capacitor, Axial 10 kW, 1/4 W Chip Resistors (1206) 10 W, 1/4 W Chip Resistor (1206) Part Number GRM55ER7H475KA01 200B103MW 100B330JW 100B220GW 100B100GW 100B8R2CW 100B5R6CW 100B4R7BW 100B3R9BW 516D227M050NP7B Manufacturer Mura

Features

Characterized with Series Equivalent Large - Signal Impedance Parameters.
Internally Matched for Ease of Use.
Qualified Up to a Maximum of 32 VDD Operation.
Integrated ESD Protection.
200°C Capable Plastic Package.
N Suffix Indicates Lead - Free Terminations. RoHS Compliant.
In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel. MRF5S9101NR1 MRF5S9101NBR1 869 - 960 MHz, 100 W, 26 V GSM/GSM EDGE.
