MRF5S9100NBR1, MRF5S9100NR1 - SINGLE N-CDMA LATERAL N-CHANNEL RF POWER MOSFETs

Freescale Semiconductor

The MRF5S9100NBR1 by Freescale Semiconductor is a SINGLE N-CDMA LATERAL N-CHANNEL RF POWER MOSFETs. Below is the official datasheet preview.

📥 Download Datasheet

MRF5S9100NBR1 SINGLE N-CDMA LATERAL N-CHANNEL RF POWER MOSFETs by Freescale Semiconductor - Datasheet Preview — Official preview page of the **MRF5S9100NBR1** SINGLE N-CDMA LATERAL N-CHANNEL RF POWER MOSFETs datasheet (Freescale Semiconductor).

Datasheet Details

Part number	MRF5S9100NBR1, MRF5S9100NR1
Manufacturer	Freescale Semiconductor
File Size	554.65 KB
Description	SINGLE N-CDMA LATERAL N-CHANNEL RF POWER MOSFETs
Datasheet	MRF5S9100NR1_FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MRF5S9100NBR1, MRF5S9100NR1. Please refer to the document for exact specifications by model.

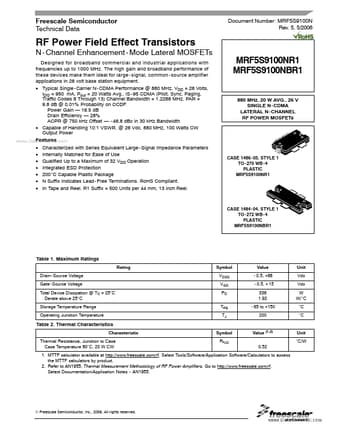

Additional preview pages of the MRF5S9100NBR1 datasheet.

MRF5S9100NBR1 Product details

Description

Ferrite Bead, Surface Mount 18 pF Chip Capacitors 0.6 - 4.5 pF Variable Capacitor, Gigatrim 0.8 - 8.0 pF Variable Capacitors, Gigatrim 6.2 pF Chip Capacitor 12 pF Chip Capacitors 11 pF Chip Capacitors 5.1 pF Chip Capacitors 470 mF, 63 V Electrolytic Capacitor 22 mF, 50 V Tantalum Capacitors 0.56 mF, 50 V Chip Capacitors 47 mF, 16 V Tantalum Capacitors 100 mF, 50 V Electrolytic Capacitor 7.15 nH Inductor 22 nH Inductor Part Number 2743019447 100B180JP 500X 27271SL 27291SL 100B6R2JP 500X 100B120JP

Features

www. DataSheet4U. com.
Characterized with Series Equivalent Large - Signal Impedance Parameters.
Internally Matched for Ease of Use.
Qualified Up to a Maximum of 32 VDD Operation.
Integrated ESD Protection.
200°C Capable Plastic Package.
N Suffix Indicates Lead - Free Terminations. RoHS Compliant.
In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel. MRF5S9100NR1 MRF5S9100NBR1 880 MHz, 20 W AVG. , 26 V SINGLE N - CDMA LATER.
