MPX2202GP, MPX2202 - Silicon Pressure Sensors

Freescale Semiconductor

Datasheet Details

Part number	MPX2202GP, MPX2202
Manufacturer	Freescale Semiconductor
File Size	374.23 KB
Description	Silicon Pressure Sensors

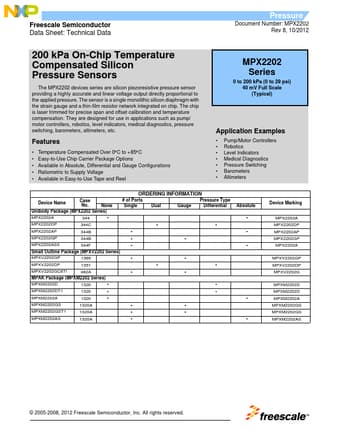

Datasheet	MPX2202-FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MPX2202GP, MPX2202. Please refer to the document for exact specifications by model.

Temperature Compensated Over 0C to +85C.
Easy-to-Use Chip Carrier Package Options.
Available in Absolute, Differential and Gauge Configurations.
Ratiometric to Supply Voltage.
Available in Easy-to-Use Tape and Reel MPX2202 Series 0 to 200 kPa (0 to 29 psi) 40 mV Full Scale (Typical).
