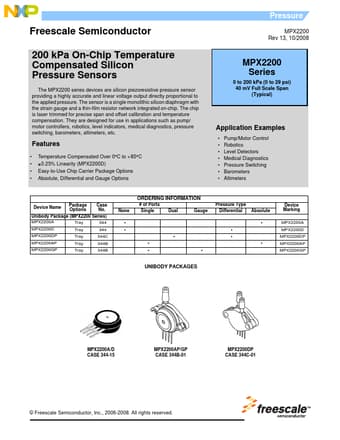

MPX2200 Datasheet (Freescale Semiconductor) - On-Chip Temperature Compensated Silicon Pressure Sensors

MPX2200, On-Chip Temperature Compensated Silicon Pressure Sensors

Freescale Semiconductor + 200 kPa On-Chip Temperature Compensated Silicon Pressure Sensors The MPX2200 series devices are silicon piezoresistive pressure sensor providing a highly accurate and linear voltage output directly proportional to the applied pressure.

The sensor is a single monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip.

The chip is laser trimmed for precise span and offset calibration and temperature compensation.

They are design

MPX2200 Features

* Temperature Compensated Over 0°C to +85°C

* ±0.25% Linearity (MPX2200D)

* Easy-to-Use Chip Carrier Package Options

* Absolute, Differential and Gauge Options Pressure MPX2200 Rev 13, 10/2008 MPX2200 Series 0 to 200 kPa (0 to 29 psi) 40 mV Full Scale Span (Typical)
