MPC8560 - Integrated Processor Hardware Specifications

Name: MPC8560
SKU: MPC8560-571616

Freescale Semiconductor

The MPC8560 by Freescale Semiconductor is a Integrated Processor Hardware Specifications. Below is the official datasheet preview.

Datasheet Details

Part number	MPC8560
Manufacturer	Freescale Semiconductor
File Size	1.46 MB
Description	Integrated Processor Hardware Specifications
Datasheet	MPC8560_FreescaleSemiconductor.pdf
Additional preview pages of the MPC8560 datasheet.

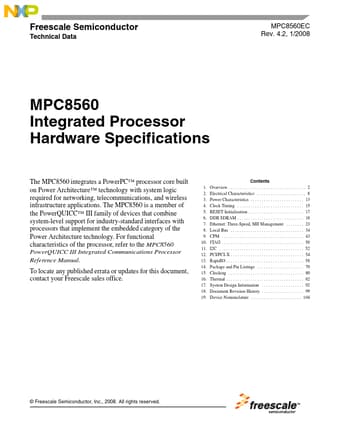

Figure 1 shows the major functional units within the MPC8560. 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. 11. 12. 13. 14. 15. 16. 17. 18. 19. © Freescale Semiconductor, Inc. , 2004. All rights reserved. Overview DDR SDRAM DDR SDRAM Controller I2C Controller 256KB L2-Cache/ SRAM e500 Coherency Module e500 Core 32 KB L1 I Cache 32 KB L1 D Cache GPIO 32b IRQs Local Bus Controller Programmable Interrupt Controller Serial DMA ROM I-Memory Core Complex Bus CPM RapidIO Controller OCeaN PCI Controller DM.
