MMG1001T1 - Gallium Arsenide CATV Integrated Amplifier

Product Overview

Freescale Semiconductor

Datasheet Details

Part number	MMG1001T1
Manufacturer	Freescale Semiconductor
File Size	181.08 KB
Description	Gallium Arsenide CATV Integrated Amplifier
Datasheet	MMG1001T1 Datasheet
Additional preview pages of the MMG1001T1 datasheet.

Product details

Description

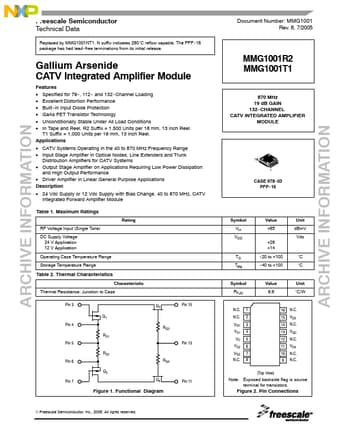

24 Vdc Supply or 12 Vdc Supply with Bias Change, 40 to 870 MHz, CATV Integrated Forward Amplifier Module Table 1. Maximum Ratings Rating RF Voltage Input (Single Tone) DC Supply Voltage 24 V Application 12 V Application Operating Case Temperature Range Storage Temperature Range Table 2. Thermal Characteristics Characteristic Thermal Resistance, Junction to Case Pin 3 Q3 Pin 15 Q1 Pin 4 Pin 5 RS1 RG3 Pin 13 Pin 6 RS2 RG4 Q2 Pin 7 Q4 Pin 11 Figure 1. Functional Diagram © Free

Features

Specified for 79 - , 112 - and 132 - Channel Loading.
Excellent Distortion Performance.
Built - in Input Diode Protection.
GaAs FET Transistor Technology.
Unconditionally Stable Under All Load Conditions.
In Tape and Reel. R2 Suffix = 1,500 Units per 16 mm, 13 inch Reel. T1 Suffix = 1,000 Units per 16 mm, 13 inch Reel.
