MMG1001NT1 - Gallium Arsenide CATV Integrated Amplifier

Product Overview

Freescale Semiconductor

Datasheet Details

Part number	MMG1001NT1
Manufacturer	Freescale Semiconductor
File Size	165.00 KB
Description	Gallium Arsenide CATV Integrated Amplifier
Datasheet	MMG1001NT1 Datasheet
Additional preview pages of the MMG1001NT1 datasheet.

Product details

Description

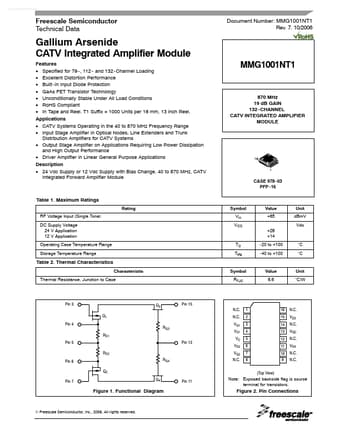

24 Vdc Supply or 12 Vdc Supply with Bias Change, 40 to 870 MHz, CATV Integrated Forward Amplifier Module MMG1001NT1 870 MHz 19 dB GAIN 132 - CHANNEL CATV INTEGRATED AMPLIFIER MODULE 16 1 CASE 978 - 03 PFP - 16 Table 1. Maximum Ratings Rating RF Voltage Input (Single Tone) DC Supply Voltage 24 V Application 12 V Application Operating Case Temperature Range Storage Temperature Range Symbol Vin VCC Value +65 +26 +14 - 20 to +100 - 40 to +100 °C °C Unit dBmV Vdc TC Tstg Table 2. The

Features

Specified for 79 - , 112 - and 132 - Channel Loading.
Excellent Distortion Performance.
Built - in Input Diode Protection.
GaAs FET Transistor Technology.
Unconditionally Stable Under All Load Conditions.
RoHS Compliant.
In Tape and Reel. T1 Suffix = 1000 Units per 16 mm, 13 inch Reel.
