MCF51JU128 - Microcontrollers

Freescale Semiconductor

📥 Download Datasheet

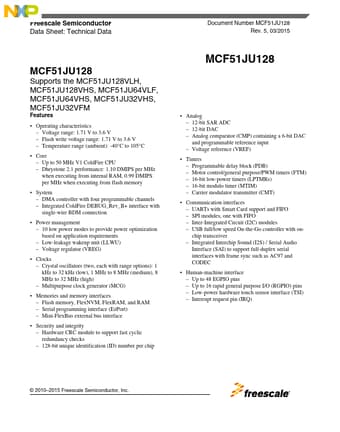

MCF51JU128 Datasheet Preview — Preview of MCF51JU128 PDF

Datasheet Details

Part number	MCF51JU128
Manufacturer	Freescale Semiconductor
File Size	1.25 MB
Description	Microcontrollers
Datasheet	MCF51JU128_FreescaleSemiconductor.pdf

MCF51JU128 Product details

Description

6.1 Core modules 21 2.2 Format 3 6.1.1 Debug specifications 21 2.3 Fields3 6.2 System modules 21 2.4 Example 4 6.3 Clock modules 21 3 Terminology and guidelines4 6.3.1 MCG specifications21 3.1 Definition: Operating requirement4 6.3.2 Oscillator electrical specifications 23 3.2 Definition: Operating behavior 4 6.4 Memories and memory interfaces26 3.3 Definition: Attribute 5 6.4.1 Flash electrical specifications 26 3.4 Definition: Rating 5 6.4.2 EzPort Switching Specifications 29

Features

Operating characteristics.
Voltage range: 1.71 V to 3.6 V.
Flash write voltage range: 1.71 V to 3.6 V.
Temperature range (ambient): -40°C to 105°C.
Core.
Up to 50 MHz V1 ColdFire CPU.
Dhrystone 2.1 performance: 1.10 DMIPS per MHz when executing from internal RAM, 0.99 DMIPS per MHz when executing from flash memory.
System.
DMA controller with four programmable channels.
Integrated ColdFire DEBUG_Rev_B+ int.
