MC9S08DV32, MC9S08DV16 - HCS08 Microcontrollers

Freescale Semiconductor

📥 Download Datasheet

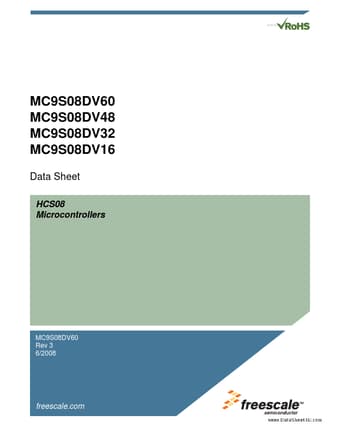

MC9S08DV32 Datasheet Preview — This datasheet PDF includes multiple part numbers: MC9S08DV32, MC9S08DV16. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MC9S08DV32, MC9S08DV16
Manufacturer	Freescale Semiconductor
File Size	4.63 MB
Description	HCS08 Microcontrollers
Datasheet	MC9S08DV16_FreescaleSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MC9S08DV32, MC9S08DV16. Please refer to the document for exact specifications by model.

MC9S08DV32 Product details

Description

of Changes Advance Information version for alpha samples customers Product Launch.Removed the 64-pin QFN package.Changed from standard to extended mode for MSCAN registers in register summary.Corrected Block diagrams for SCI.Updated the latest Temp Sensor information.Made FTSTMOD reserved.Updated device to use the ADC 12-bit module.Revised the MCG module.Updated the TPM block module to version 3. Added the TPM block module version 2 as an appendix for devices using 3M05C (or earlier) mas

Features

8-Bit HCS08 Central Processor Unit (CPU).
40-MHz HCS08 CPU (20-MHz bus).
HC08 instruction set with added BGND instruction.
Support for up to 32 interrupt/reset sources Peripherals.
ADC.
16-channel, 12-bit resolution, 2.5 μs conversion time, automatic compare function, temperature sensor, internal bandgap reference channel.
ACMPx.
Two analog comparators with selectable interrupt on rising, falling, or either edge of comparator output.
