DSP56855 - 16-bit Digital Signal Controllers

The DSP56855 by Freescale Semiconductor is a 16-bit Digital Signal Controllers. Below is the official datasheet preview.

📥 Download Datasheet

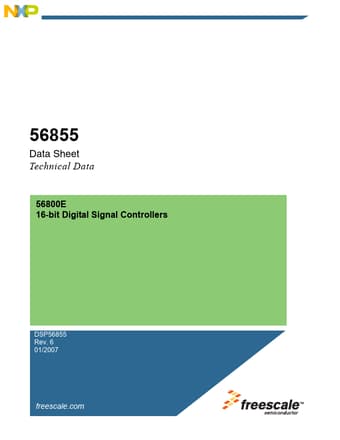

Official preview page of the DSP56855 16-bit Digital Signal Controllers datasheet (Freescale Semiconductor).

Datasheet Details

Part number DSP56855
Manufacturer Freescale Semiconductor
File Size 787.25 KB
Description 16-bit Digital Signal Controllers
Datasheet download datasheet DSP56855-FreescaleSemiconductor.pdf
Additional preview pages of the DSP56855 datasheet.

DSP56855 Product details

Description

120 MIPS at 120MHz 24K x 16-bit Program SRAM 24K x 16-bit Data SRAM 1K x 16-bit Boot ROM Access up to 2M words of program memory or 8M words of data memory Chip Select Logic for glueless interface to ROM and SRAM Six (6) independent channels of DMA Enhanced Synchronous Serial Interface (ESSI) Two (2) Serial Communication Interfaces (SCI) General Purpose 16-bit Quad Timer with 1 external pin
