DSP56854 - 16-bit Digital Signal Controllers

Freescale Semiconductor

The DSP56854 by Freescale Semiconductor is a 16-bit Digital Signal Controllers. Below is the official datasheet preview.

📥 Download Datasheet

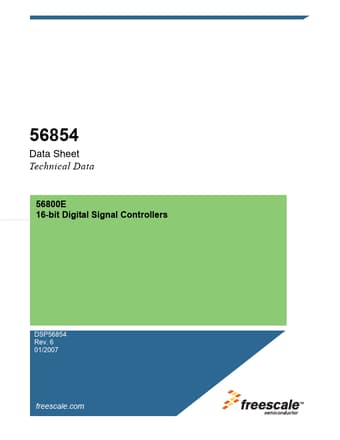

DSP56854 16-bit Digital Signal Controllers by Freescale Semiconductor - Datasheet Preview — Official preview page of the **DSP56854** 16-bit Digital Signal Controllers datasheet (Freescale Semiconductor).

Datasheet Details

Part number	DSP56854
Manufacturer	Freescale Semiconductor
File Size	1.09 MB
Description	16-bit Digital Signal Controllers
Datasheet	DSP56854_FreescaleSemiconductor.pdf
Additional preview pages of the DSP56854 datasheet.

DSP56854 Product details

Description

120 MIPS at 120MHz 16K x 16-bit Program SRAM 16K x 16-bit Data SRAM 1K x 16-bit Boot ROM Access up to 2M words of program or 8M data memory Chip Select Logic for glue-less interface to ROM and SRAM Six (6) independent channels of DMA Enhanced Synchronous Serial Interfaces (ESSI) Two (2) Serial Communication Interfaces (SCI) Serial Port Interface (SPI) 8-bit Parallel Host Interface

Features

1.1.1.
Digital Signal Processing Core Efficient 16-bit engine with dual Harvard architecture 120 Million Instructions Per Second (MIPS) at 120MHz core frequency Single-cycle 16 × 16-bit parallel Multiplier-Accumulator (MAC) Four (4) 36-bit accumulators including extension bits 16-bit bidirectional shifter Parallel instruction set with uni.
