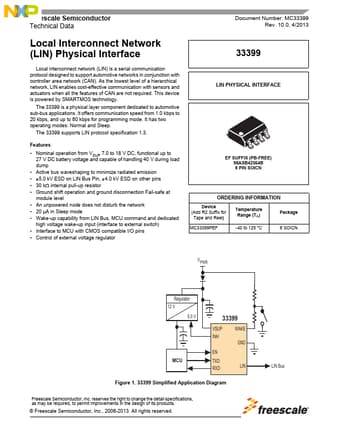

33399 Datasheet (Freescale Semiconductor) - Local Interconnect Network (LIN) Physical Interface

33399, Local Interconnect Network (LIN) Physical Interface

of each pin can be found in the Functional Pin Description section beginning on page 10.

Pin Pin Name Formal Name Definition 1 RXD 2 EN 3 WAKE 4 TXD 5 GND 6 LIN 7 VSUP 8 INH Data Output Enable Control Wake Input Data Input Ground LIN Bus Power Supply Inhibit Output MCU interface that reports t

33399 Features

* of CAN are not required. This device is powered by SMARTMOS technology. The 33399 is a physical layer component dedicated to automotive sub-bus applications. It offers communication speed from 1.0 kbps to 20 kbps, and up to 60 kbps for programming mode. It has two operating modes: Normal and Sleep.
