33390 - Class B Serial Transceiver

Description

Pin 1 2 3 Pin Name SLEEP GND LOAD BUS VBAT 4X/LOOP Tx Rx Description Enables the transceiver when Logic 1 and disables the transceiver when Logic 0.

Device ground pin.

Accommodates an external pull-down resistor to ground to provide loss of ground protection.

Features

  • Designed for SAE J-1850 Class B Data Rates.
  • Full Operational Bus Dynamics Over a Supply Voltage of 9.0 to 16 V.
  • Ambient Operating Temperature of -40°C to 125°C.
  • Interfaces Directly to Standard 5.0 V CMOS Microcontroller.
  • BUS Pin Protected Against Shorts to Battery and Ground.
  • Thermal Shutdown with Hysteresis.
  • Voltage Waveshaping of Bus Output Driver.
  • 40 V Max VBAT Capability J-1850 SERIAL.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
33394 Switch Mode Power Supply Freescale Semiconductor
33395 Three-Phase Gate Driver IC Freescale Semiconductor
33395T Three-Phase Gate Driver IC Freescale Semiconductor
33399 Local Interconnect Network (LIN) Physical Interface Freescale Semiconductor
333-2SDRC 5.0mm Round Type LED Lamps Everlight Electronics

Other Datasheets by Motorola Semiconductor (now NXP Semiconductors)

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

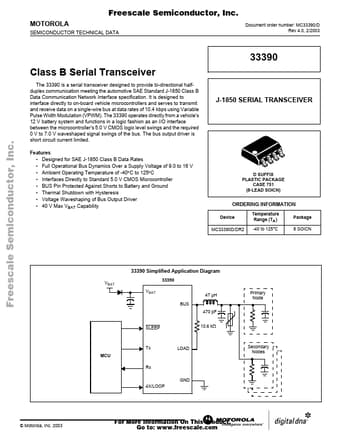

Freescale Semiconductor, Inc. MOTOROLA SEMICONDUCTOR TECHNICAL DATA Document order number: MC33390/D Rev 4.0, 2/2003 33390 Class B Serial Transceiver The 33390 is a serial transceiver designed to provide bi-directional halfduplex communication meeting the automotive SAE Standard J-1850 Class B Data Communication Network Interface specification. It is designed to interface directly to on-board vehicle microcontrollers and serves to transmit and receive data on a single-wire bus at data rates of 10.4 kbps using Variable Pulse Width Modulation (VPWM). The 33390 operates directly from a vehicle's 12 V battery system and functions in a logic fashion as an I/O interface between the microcontroller's 5.0 V CMOS logic level swings and the required 0 V to 7.0 V waveshaped signal swings of the bus.
Published: |
