DF10G - Glass Passivated Bridge Rectifiers

Product Overview

First Semiconductor

📥 Download Datasheet

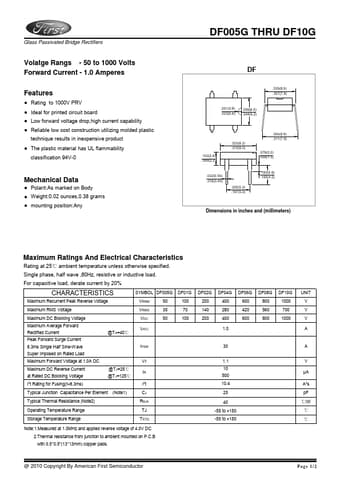

DF10G Glass Passivated Bridge Rectifiers by First Semiconductor - Datasheet Preview — Datasheet preview – DF10G

Datasheet Details

Part number	DF10G
Manufacturer	First Semiconductor
File Size	400.15 KB
Description	Glass Passivated Bridge Rectifiers
Datasheet	DF10G Datasheet
Additional preview pages of the DF10G datasheet.

Product details

Features

Rating to 1000V PRV.
Ideal for printed circuit board.
Low forward voltage drop,high current capability.
Reliable low cost construction utilizing molded plastic technique results in inexpensive product.
The plastic material has UL flammability classification 94V-0 Mechanical Data.
Polarit:As marked on Body.
Weight:0.02 ounces,0.38 grams.
mounting position:Any DF005G THRU DF10G DF .031(0.8) .023(0.6) .256(6.5) .244(6.2) .335(8.5) .307(7.8) .102(2.6).
