DF10G6M4N, ESD Protection Diode

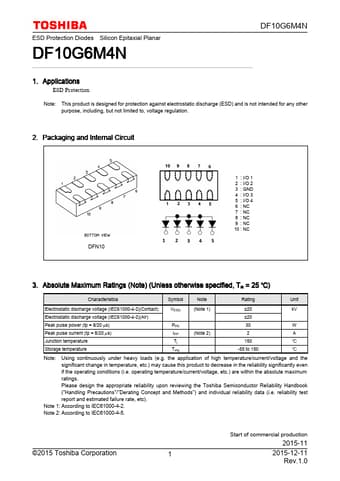

ESD Protection Diodes Silicon Epitaxial Planar DF10G6M4N DF10G6M4N 1.

Applications ESD Protection Note: This product is designed for protection against electrostatic discharge (ESD) and is not intended for any other purpose, including, but not limited to, voltage regulation.

Packaging and Internal Circuit DFN10 1 : I/O 1 2 : I/O 2 3 : GND 4 : I/O 3 5 : I/O 4 6 : NC 7 : NC 8 : NC 9 : NC 10 : NC 3.

Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 ) Characteristics S
