FMHR0205 - Temperature Conditioned Low Loss TNC Male to TNC Female Bulkhead Cable

Product Overview

Datasheet Details

Part number	FMHR0205
Manufacturer	Fairview Microwave
File Size	683.03 KB
Description	Temperature Conditioned Low Loss TNC Male to TNC Female Bulkhead Cable
Datasheet	FMHR0205 Datasheet

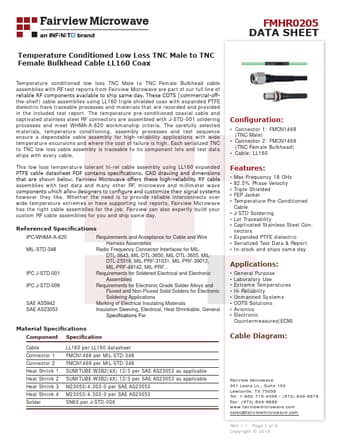

Additional preview pages of the FMHR0205 datasheet.

Product details

Description

Min Typ Max Units .Frequency Range DC 18 GHz VSWR 1.37:1 Velocity of Propagation 82.5 % Capacitance 25 [82.02] pF/ft [pF/m] Dielectric Withstanding Voltage (AC) 1,000 Vrms Specifications by Frequency Description F1 F2 F3 F4 F5 Units .Frequency 1 2 4.5 9 18 GHz Insertion Loss (Max.) 0.11 0.16 0.24 0.35 0.51 dB/ft 0.36 0.52 0.79 1.15 1.67 dB/m Electrical Specification Notes: Insertion Loss doe

Features

Max Frequency 18 GHz.
82.5% Phase Velocity.
Triple Shielded.
FEP Jacket.
Temperature Pre-Conditioned Cable.
J-STD Soldering.
Lot Traceability.
Captivated Stainless Steel Con- nectors.
Expanded PTFE dielectric.
Serialized Test Data & Report.
In-stock and ships same day.
