FMHR0203 - Temperature Conditioned SMA to N Cable Assemblies

Product Overview

Datasheet Details

Part number	FMHR0203
Manufacturer	Fairview Microwave
File Size	676.26 KB
Description	Temperature Conditioned SMA to N Cable Assemblies
Datasheet	FMHR0203 Datasheet

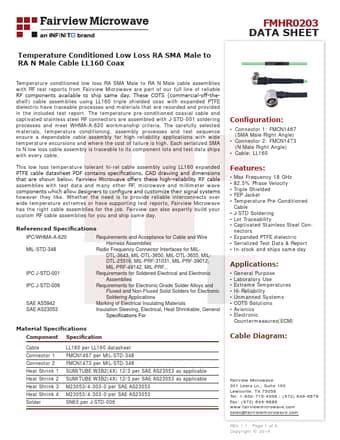

Additional preview pages of the FMHR0203 datasheet.

Product details

Description

Min Typ Max Units .Frequency Range DC 18 GHz VSWR 1.44:1 Velocity of Propagation 82.5 % Capacitance 25 [82.02] pF/ft [pF/m] Dielectric Withstanding Voltage (AC) 1,000 Vrms Specifications by Frequency Description F1 F2 F3 F4 F5 Units .Frequency 1 2 4.5 9 18 GHz Insertion Loss (Max.) 0.11 0.16 0.24 0.35 0.51 dB/ft 0.36 0.52 0.79 1.15 1.67 dB/m Electrical Specification Notes: Insertion Loss doe

Features

Max Frequency 18 GHz.
82.5% Phase Velocity.
Triple Shielded.
FEP Jacket.
Temperature Pre-Conditioned Cable.
J-STD Soldering.
Lot Traceability.
Captivated Stainless Steel Con- nectors.
Expanded PTFE dielectric.
Serialized Test Data & Report.
In-stock and ships same day.
