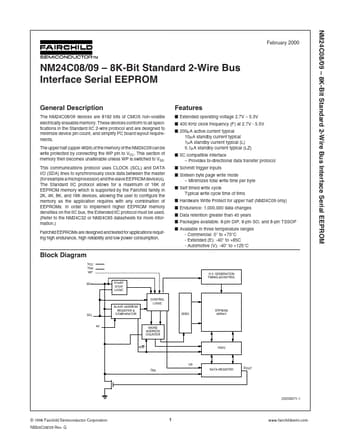

NM24C08 - 8K-Bit Standard 2-Wire Bus Interface Serial EEPROM

Fairchild

Datasheet Details

The NM24C08/09 devices are 8192 bits of CMOS non-volatile electrically erasable memory.

I Extended operating voltage 2.7V.
5.5V I 400 KHz clock frequency (F) at 2.7V - 5.5V I 200µA active current typical 10µA standby current typical 1µA standby current typical (L) 0.1µA standby current typical (LZ) I IIC compatible interface.
Provides bi-directional data transfer protocol I Schmitt trigger inputs I Sixteen byte page write mode.
Minimizes total write time per byte I Self timed write cycle Typical write cycle time of 6ms I Hardware Write Protect for upper h.
