NDS335N - N-Channel Logic Level Enhancement Mode Field Effect Transistor

General Description

These N -Channel logic level enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process is especially tailored to minimize on-state resistance.

Key Features

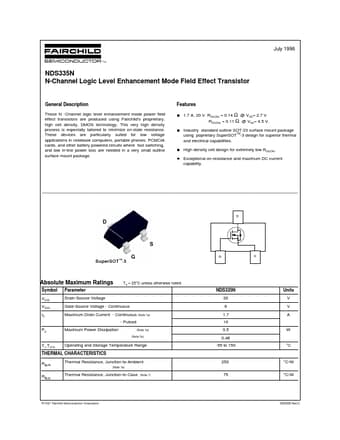

  • 1.7 A, 20 V. RDS(ON) = 0.14 Ω @ VGS= 2.7 V RDS(ON) = 0.11 Ω @ VGS= 4.5 V. Industry standard outline SOT-23 surface mount package using poprietary SuperSOTTM-3 design for superior thermal and electrical capabilities. High density cell design for extremely low RDS(ON). Exceptional on-resistance and maximum DC current capability. ________________________________________________________________________________ D G S Absolute Maximum Ratings Symbol VDSS VGSS ID PD TJ,TSTG Parameter Drain-Source.

📥 Download Datasheet

Datasheet Details

Part number NDS335N
Manufacturer Fairchild (onsemi)
File Size 59.51 KB
Description N-Channel Logic Level Enhancement Mode Field Effect Transistor
Datasheet download datasheet NDS335N Datasheet
