MM74HC4046 - CMOS Phase Lock Loop

Fairchild

The MM74HC4046 by Fairchild is a CMOS Phase Lock Loop. Below is the official datasheet preview.

📥 Download Datasheet

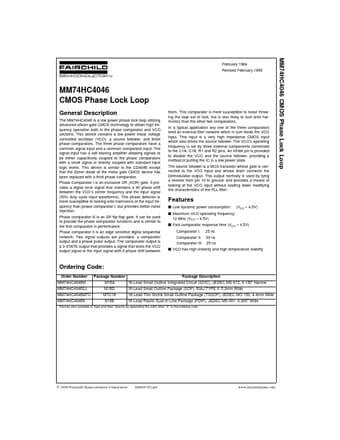

MM74HC4046 CMOS Phase Lock Loop by Fairchild - Datasheet Preview — Official preview page of the **MM74HC4046** CMOS Phase Lock Loop datasheet (Fairchild).

Datasheet Details

Part number	MM74HC4046
Manufacturer	Fairchild
File Size	218.17 KB
Description	CMOS Phase Lock Loop
Datasheet	MM74HC4046_FairchildSemiconductor.pdf
Additional preview pages of the MM74HC4046 datasheet.

MM74HC4046 Product details

Description

The MM74HC4046 is a low power phase lock loop utilizing advanced silicon-gate CMOS technology to obtain high frequency operation both in the phase comparator and VCO sections.

Features

s Low dynamic power consumption: s Maximum VCO operating frequency: 12 MHz (VCC = 4.5V) s Fast comparator response time (VCC = 4.5V) Comparator I: Comparator II: Comparator III: 25 ns 30 ns 25 ns (VCC = 4.5V) s VCO has high linearity and high temperature stability Ordering Code: Order Number MM74HC4046M MM74HC4046SJ MM74HC4046MTC MM74HC4046N Package Number M16A M16D MTC16 N16E Package.
