MM74HC245A - Octal 3-STATE Transceiver

Fairchild

The MM74HC245A by Fairchild is a Octal 3-STATE Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

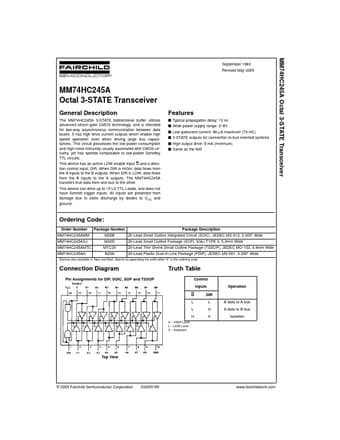

MM74HC245A Octal 3-STATE Transceiver by Fairchild - Datasheet Preview — Official preview page of the **MM74HC245A** Octal 3-STATE Transceiver datasheet (Fairchild).

Datasheet Details

Part number	MM74HC245A
Manufacturer	Fairchild
File Size	103.25 KB
Description	Octal 3-STATE Transceiver
Datasheet	MM74HC245A_FairchildSemiconductor.pdf
Additional preview pages of the MM74HC245A datasheet.

MM74HC245A Product details

Description

The MM74HC245A 3-STATE bidirectional buffer utilizes advanced silicon-gate CMOS technology, and is intended for two-way asynchronous communication between data buses.

Features

s Typical propagation delay: 13 ns s Wide power supply range: 2.
6V s Low quiescent current: 80 PA maximum (74 HC) s 3-STATE outputs for connection to bus oriented systems s High output drive: 6 mA (minimum) s Same as the 645 Ordering Code: Order Number Package Number Package.
