IRFS654B - 250V N-Channel MOSFET

Fairchild

📥 Download Datasheet

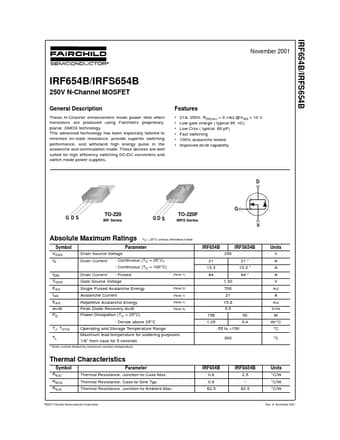

IRFS654B Datasheet Preview — Preview of IRFS654B PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IRFS654B
Manufacturer	Fairchild ↗
File Size	867.92 KB
Description	250V N-Channel MOSFET
Datasheet	IRFS654B_Fairchild.pdf

IRFS654B Product details

Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild’s proprietary, planar, DMOS technology.

Features

21A, 250V, RDS(on) = 0.14Ω @VGS = 10 V Low gate charge ( typical 95 nC) Low Crss ( typical 60 pF) Fast switching 100% avalanche tested Improved dv/dt capability D G G DS TO-220 IRF Series GD S TO-220F IRFS Series S Absolute Maximum Ratings Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL TC = 25°C unless otherwise noted Parameter Drain-Source Voltage - Continuous (TC = 25°C) Drain Current - Continuous (TC = 100°C) Drain.
