RMWB24001 - 24 GHZ Buffer Amp

Name: RMWB24001
SKU: RMWB24001-638555

Fairchild Semiconductor

📥 Download Datasheet

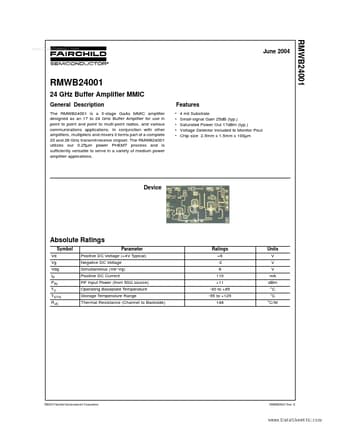

RMWB24001 Datasheet Preview — Preview of RMWB24001 PDF

Datasheet Details

Part number	RMWB24001
Manufacturer	Fairchild Semiconductor
File Size	130.85 KB
Description	24 GHZ Buffer Amp
Datasheet	RMWB24001_FairchildSemiconductor.pdf

RMWB24001 Product details

Description

The RMWB24001 is a 3-stage GaAs MMIC amplifier designed as an 17 to 24 GHz Buffer Amplifier for use in point to point and point to multi-point radios, and various communications applications.

Features

4 mil Substrate Small-signal Gain 25dB (typ. ) Saturated Power Out 17dBm (typ. ) Voltage Detector Included to Monitor Pout Chip size 2.5mm x 1.5mm x 100µm Device Absolute Ratings Symbol Vd Vg Vdg ID PIN TC TSTG RJC Parameter Positive DC Voltage (+4V Typical) Negative DC Voltage Simultaneous (Vd.
Vg) Positive DC Current RF Input Power (from 50Ω source) Operating Baseplate Temperature Storage Temperature Range Thermal Resistance (Channel to.
