RMWB11001 - 11 GHZ Buffer Amp

Name: RMWB11001
SKU: RMWB11001-638553

Fairchild Semiconductor

📥 Download Datasheet

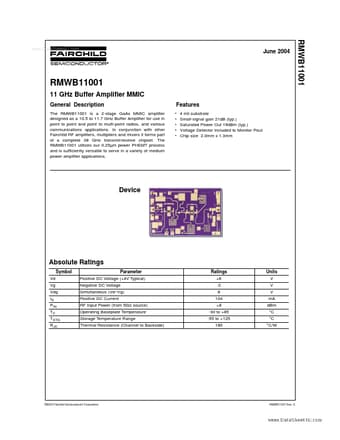

RMWB11001 Datasheet Preview — Preview of RMWB11001 PDF

Datasheet Details

Part number	RMWB11001
Manufacturer	Fairchild Semiconductor
File Size	387.13 KB
Description	11 GHZ Buffer Amp
Datasheet	RMWB11001_FairchildSemiconductor.pdf

RMWB11001 Product details

Description

The RMWB11001 is a 2-stage GaAs MMIC amplifier designed as a 10.5 to 11.7 GHz Buffer Amplifier for use in point to point and point to multi-point radios, and various communications applications.

Features

4 mil substrate Small-signal gain 21dB (typ. ) Saturated Power Out 19dBm (typ. ) Voltage Detector Included to Monitor Pout Chip size 2.0mm x 1.3mm Device Absolute Ratings Symbol Vd Vg Vdg ID PIN TC TSTG RJC Parameter Positive DC Voltage (+4V Typical) Negative DC Voltage Simultaneous (Vd.
Vg) Positive DC Current RF Input Power (from 50Ω source) Operating Baseplate Temperature Storage Temperature Range Thermal Resistance (Channel to Backside.
