QTLP650D-RGB SURFACE MOUNT LED LAMP

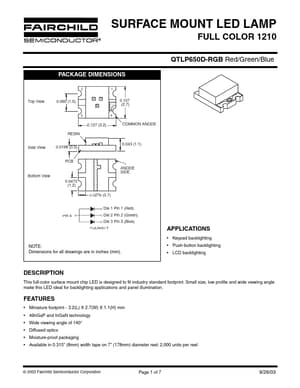

SURFACE MOUNT LED LAMP FULL COLOR 1210 QTLP650D-RGB Red/Green/Blue PACKAGE DIMENSIONS 2 G B R 1 Top View 0.060 (1.5) 0.107 (2.7) 4 3 0.127 (3.2) RESIN 0.0198 (0.5) COMMON ANODE Side View 0.043 (1.1) PCB ANODE SIDE Bottom View 0.0473 (1.2) 0.0276 (0.7) Die 1 Pin 1 (Red) Pin 4 Die 2 Pin 2 (Green) Die 3 Pin 3 (Blue) POLARITY APPLICATIONS Keypad backlighting Push-button backlighting LCD backlighting NOTE: Dimensions for all drawings are in inches (mm). DESC.

QTLP650D-RGB Features

* Miniature footprint - 3.2(L) X 2.7(W) X 1.1(H) mm

* AllnGaP and InGaN technology

* Wide viewing angle of 140°

* Diffused optics

* Moisture-proof packaging

* Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel © 200
