MPSA27, NPN General Purpose Amplifier

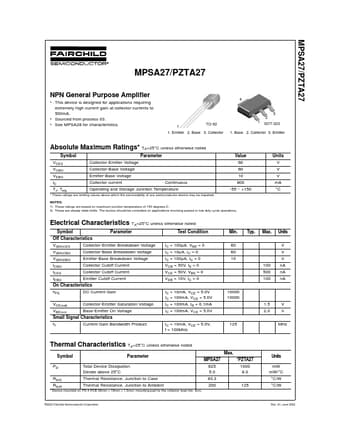

MPSA27/PZTA27 MPSA27/PZTA27 NPN General Purpose Amplifier This device is designed for applications requiring extremely high current gain at collector currents to 500mA.

Sourced from process 03.

See MPSA28 for characteristics.

4 3 2 TO-92 1 1.

Emitter 2.

Base 3.

Collector 1 SOT-223 1.

Base 2.

Collector 3.

Emitter Absolute Maximum Ratings TA=25°C unless otherwise noted Symbol VCES VCBO VEBO IC TJ, Tstg Parameter Collector-Emitter Voltage Collector-Base Voltag
