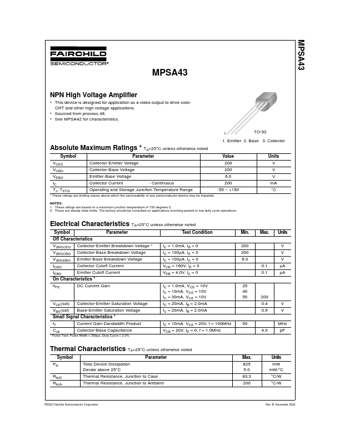

MPSA43
MPSA43
NPN High Voltage Amplifier
• This device is designed for application as a video output to drive color CRT and other high voltage applications.
• Sourced from process 48. • See MPSA42 for characteristics.
1 TO-92
Absolute Maximum Ratings * TA=25°C unless otherwise noted
1. Emitter 2. Base 3. Collector
Symbol
Parameter
Value
Units
VCES
Collector-Emitter Voltage
200
VCBO
Collector-Base Voltage
200
VEBO
Emitter-Base Voltage
6.0
IC
Collector Current
- Continuous
200
TJ, TSTG
Operating and Storage Junction Temperature Range
-55 ~ +150
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
V V V mA °C
NOTES: 1. These ratings are based on a maximum junction temperature of 150 degrees C. 2.
