MOCD211-M - DUAL CHANNEL PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLERS

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	MOCD211-M
Manufacturer	Fairchild Semiconductor
File Size	506.57 KB
Description	DUAL CHANNEL PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLERS
Datasheet	MOCD211-M Datasheet

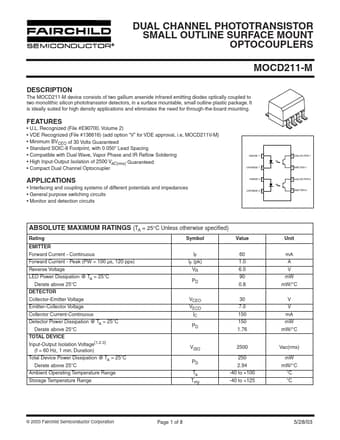

Additional preview pages of the MOCD211-M datasheet.

Product details

Description

The MOCD211-M device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline plastic package.

Features

U. L. Recognized (File #E90700, Volume 2).
VDE Recognized (File #136616) (add option “V” for VDE approval, i. e, MOCD211V-M).
Minimum BVCEO of 30 Volts Guaranteed.
Standard SOIC-8 Footprint, with 0.050" Lead Spacing.
Compatible with Dual Wave, Vapor Phase and IR Reﬂow Soldering.
High Input-Output Isolation of 2500 VAC(rms) Guaranteed.
Compact Dual Channel Optocoupler ANODE 1 1 8.
