MOCD213-M - DUAL CHANNEL PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLERS

Product Overview

Fairchild Semiconductor

Datasheet Details

Part number	MOCD213-M
Manufacturer	Fairchild Semiconductor
File Size	495.44 KB
Description	DUAL CHANNEL PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLERS
Datasheet	MOCD213-M Datasheet

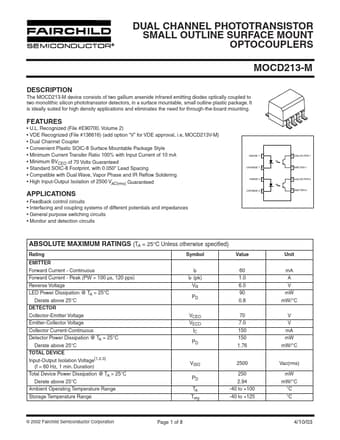

Additional preview pages of the MOCD213-M datasheet.

Product details

Description

The MOCD213-M device consists of two gallium arsenide infrared emitting diodes optically coupled to two monolithic silicon phototransistor detectors, in a surface mountable, small outline plastic package.

Features

U. L. Recognized (File #E90700, Volume 2).
VDE Recognized (File #136616) (add option “V” for VDE approval, i. e, MOCD213V-M).
Dual Channel Coupler.
Convenient Plastic SOIC-8 Surface Mountable Package Style.
Minimum Current Transfer Ratio 100% with Input Current of 10 mA.
Minimum BVCEO of 70 Volts Guaranteed.
Standard SOIC-8 Footprint, with 0.050" Lead Spacing.
Compatible with Dual Wave, Vapor Phase and IR Reﬂow Soldering.
