HUF75333S3S, HUF75333G3 - N-Channel UltraFET Power MOSFETs

Fairchild Semiconductor

📥 Download Datasheet

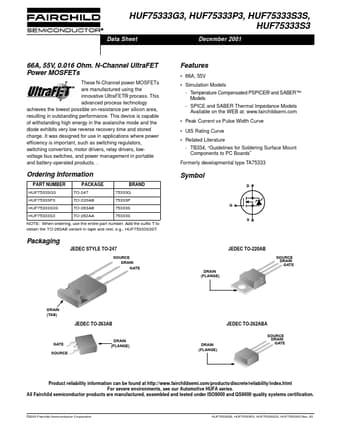

HUF75333S3S Datasheet Preview — This datasheet PDF includes multiple part numbers: HUF75333S3S, HUF75333G3. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HUF75333S3S, HUF75333G3
Manufacturer	Fairchild ↗ Semiconductor
File Size	277.91 KB
Description	N-Channel UltraFET Power MOSFETs
Datasheet	HUF75333G3-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: HUF75333S3S, HUF75333G3. Please refer to the document for exact specifications by model.

HUF75333S3S Product details

Features

66A, 55V.
Simulation Models - Temperature Compensated PSPICE® and SABER™ Models - SPICE and SABER Thermal Impedance Models Available on the WEB at: www. fairchildsemi. com.
Peak Current vs Pulse Width Curve.
UIS Rating Curve.
Related Literature - TB334, “Guidelines for Soldering Surface Mount Components to PC Boards” Formerly developmental type TA75333 Symbol D G S JEDEC TO-220AB DRAIN (FLANGE) SOURCE DRAIN GATE DRAIN (TAB) JEDEC TO-263AB GATE SOU.
