FSBB20CH60D - Motion SPM 3 module

Name: FSBB20CH60D
SKU: FSBB20CH60D-1006015

Fairchild Semiconductor

📥 Download Datasheet

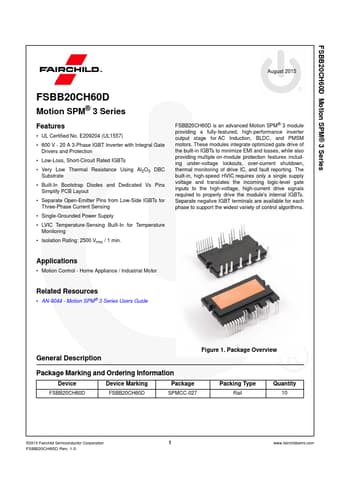

FSBB20CH60D Datasheet Preview — Preview of FSBB20CH60D PDF

Datasheet Details

Part number	FSBB20CH60D
Manufacturer	Fairchild Semiconductor
File Size	713.27 KB
Description	Motion SPM 3 module
Datasheet	FSBB20CH60D-FairchildSemiconductor.pdf

FSBB20CH60D Product details

Description

Figure 1. 600 V - 20 A IGBT inverter for three-phase DC / AC power conversion (Please refer to Figure 3) Integrated Drive, Protection and System Control Functions For in

Features

UL Certified No. E209204 (UL1557).
600 V - 20 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection.
Low-Loss, Short-Circuit Rated IGBTs.
Very Low Thermal Resistance Using Al2O3 DBC Substrate.
Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout.
Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing.
Single-Grounded Power Supply.
LVIC Temperature-Sensing Built-In for Tempe.
