FSBB20CH60C - Motion SPM 3 module

Name: FSBB20CH60C
SKU: FSBB20CH60C-653965

Fairchild Semiconductor

📥 Download Datasheet

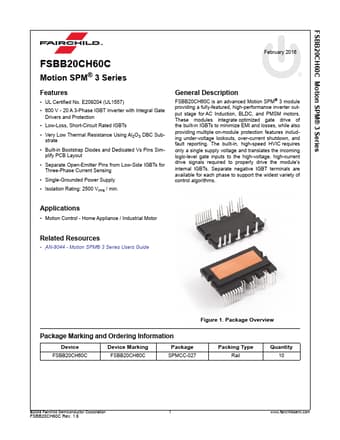

FSBB20CH60C Datasheet Preview — Preview of FSBB20CH60C PDF

Datasheet Details

Part number	FSBB20CH60C
Manufacturer	Fairchild Semiconductor
File Size	740.19 KB
Description	Motion SPM 3 module
Datasheet	FSBB20CH60C_FairchildSemiconductor.pdf

FSBB20CH60C Product details

Description

FSBB20CH60C is an advanced Motion SPM® 3 module providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors.

Features

UL Certified No. E209204 (UL1557).
600 V - 20 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection.
Low-Loss, Short-Circuit Rated IGBTs.
Very Low Thermal Resistance Using Al2O3 DBC Sub- strate.
Built-in Bootstrap Diodes and Dedicated Vs Pins Sim- plify PCB Layout.
Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing.
Single-Grounded Power Supply.
Isolation Rating: 2500 Vrms / min. Feb.
