FSA9485 - USB Port Multimedia Switch Featuring Automatic Switching and Accessory Detection

Fairchild Semiconductor

📥 Download Datasheet

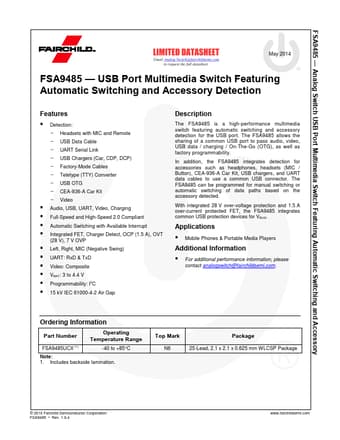

FSA9485 Datasheet Preview — Preview of FSA9485 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FSA9485
Manufacturer	Fairchild ↗ Semiconductor
File Size	913.61 KB
Description	USB Port Multimedia Switch Featuring Automatic Switching and Accessory Detection
Datasheet	FSA9485-FairchildSemiconductor.pdf

FSA9485 Product details

Description

The FSA9485 is a high-performance multimedia switch featuring automatic switching and accessory detection for the USB port.

Features

Detection: - Headsets with MIC and Remote - USB Data Cable - UART Serial Link - USB Chargers (Car, CDP, DCP) - Factory-Mode Cables - Teletype (TTY) Converter - USB OTG - CEA-936-A Car Kit - Video.
Audio, USB, UART, Video, Charging.
Full-Speed and High-Speed 2.0 Compliant.
Automatic Switching with Available Interrupt.
Integrated FET, Charger Detect, OCP (1.5 A), OVT (28 V), 7 V OVP.
Left, Right, MIC (Negative Swing).
UART: RxD & TxD.
Video: Composite.
