FSA1156 - Low Voltage SPST Analog Switch

Description

The FSA1156 and FSA1157 are high-performance Single-Pole / Single-Throw (SPST) analog switches.

The devices feature ultra-low RON of 0.75  (typical) and operate over a wide VCC range of 1.65 V to 5.5 V.

The devices are fabricated with sub-micron CMOS technology to achieve fast switching speeds.

Features

  • Maximum 0.95 RON for 4.5V Supply at 25°C.
  • 0.3 Maximum RON Flatness at 4.5V Supply.
  • Broad VCC Operating Range: 1.65V to 5.5v.
  • Fast Turn-On and Turn-Off Time.
  • Over-Voltage Tolerant, TTL-Compatible Control Input.
  • Available in space-saving 6-lead, MicroPak™ and SC70 Packages.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FSA1156 SPST Analog Switch ON Semiconductor
FSA1153 DP3T USB Type C Audio andUART Analog Switch ON Semiconductor
FSA1157 SPST Analog Switch ON Semiconductor
FSA1208 High-Speed Isolation Switch ON Semiconductor
FSA16012M FSA16012M ETC

Other Datasheets by Fairchild (onsemi)

Part Number Description
FSA1157 Low Voltage SPST Analog Switch
FSA110 Audio and Wired-OR USB2.0 Hi-Speed(480Mbps) Switch
FSA1208 High-Speed Isolation Switch
FSA1211 Hi-Speed Isolation Switch
FSA1256 Dual SPST Analog Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

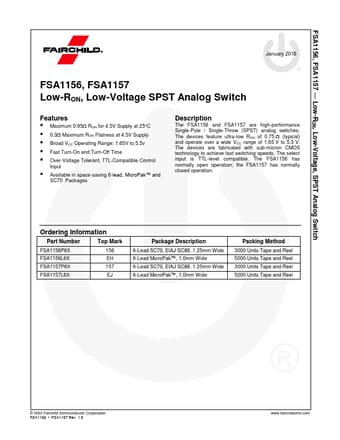

FSA1156, FSA1157 — Low-RON, Low-Voltage, SPST Analog Switch January 2016 FSA1156, FSA1157 Low-RON, Low-Voltage SPST Analog Switch Features  Maximum 0.95 RON for 4.5V Supply at 25°C  0.3 Maximum RON Flatness at 4.5V Supply  Broad VCC Operating Range: 1.65V to 5.5v  Fast Turn-On and Turn-Off Time  Over-Voltage Tolerant, TTL-Compatible Control Input  Available in space-saving 6-lead, MicroPak™ and SC70 Packages Description The FSA1156 and FSA1157 are high-performance Single-Pole / Single-Throw (SPST) analog switches. The devices feature ultra-low RON of 0.75  (typical) and operate over a wide VCC range of 1.65 V to 5.5 V. The devices are fabricated with sub-micron CMOS technology to achieve fast switching speeds. The select input is TTL-level compatible.
