FQB34N20L - 200V N-Channel MOSFET

Fairchild Semiconductor

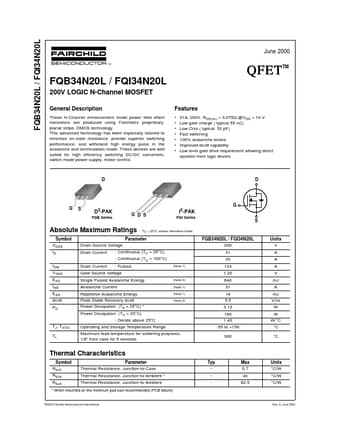

The FQB34N20L by Fairchild Semiconductor is a 200V N-Channel MOSFET. Below is the official datasheet preview.

Datasheet Details

Part number	FQB34N20L
Manufacturer	Fairchild Semiconductor
File Size	739.84 KB
Description	200V N-Channel MOSFET
Datasheet	FQB34N20L_FairchildSemiconductor.pdf

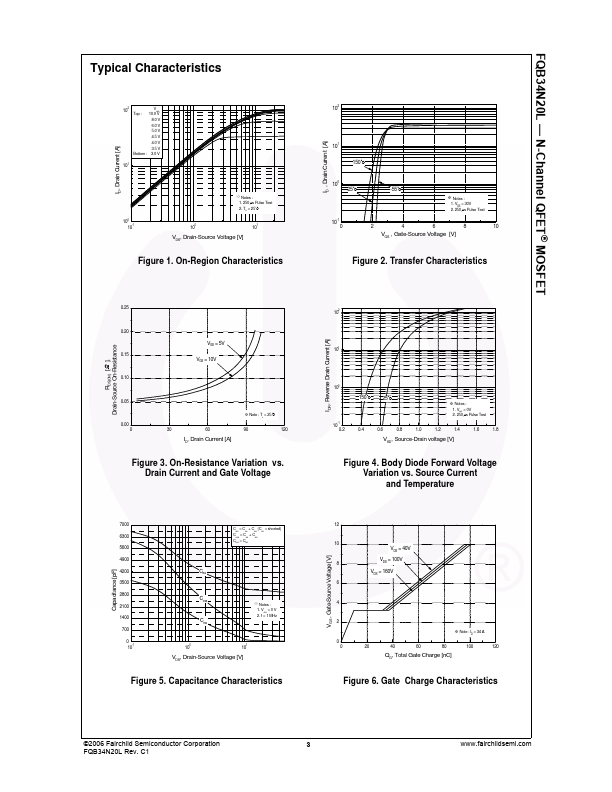

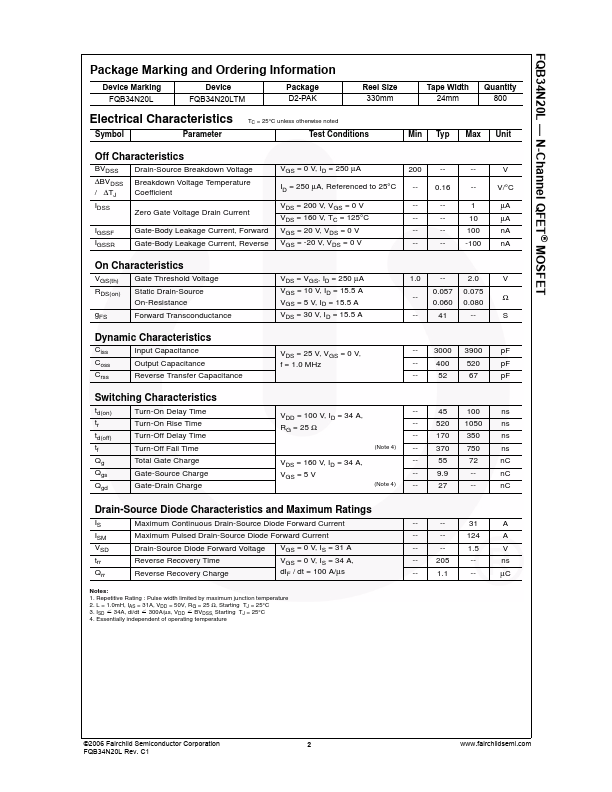

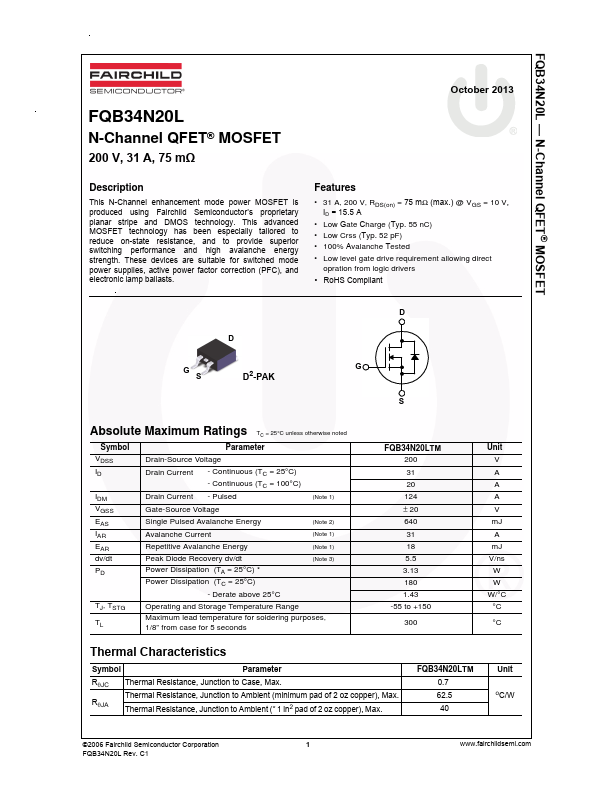

Additional preview pages of the FQB34N20L datasheet.

This N-Channel enhancement mode power MOSFET is produced using Fairchild Semiconductor’s proprietary planar stripe and DMOS technology.

31 A, 200 V, RDS(on) = 75 mΩ (max. ) @ VGS = 10 V, ID = 15.5 A.
Low Gate Charge (Typ. 55 nC).
Low Crss (Typ. 52 pF).
100% Avalanche Tested.
Low level gate drive requirement allowing direct opration from logic drivers.
RoHS Compliant D D G S D2-PAK G S Absolute Maximum Ratings TC = 25°C unless otherwise noted Symbol VDSS ID IDM VGSS EAS IAR EAR dv/dt PD TJ, TSTG TL Parameter Drain-Source Voltage Drain Current - Continuous (TC = 25°C).
